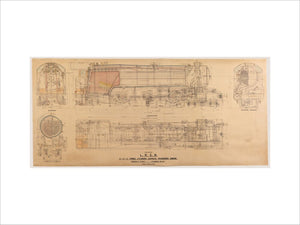

Sectional general arrangement drawing of LNER Class A3 4-6-2, Q-96 (Flying Scotsman). Strictly speaking this applies to the earlier 1928-30 builds, as the final 1934-35 batch were turned out with 'banjo' dome (94A) boilers, which were later also fitted to most of the class.
